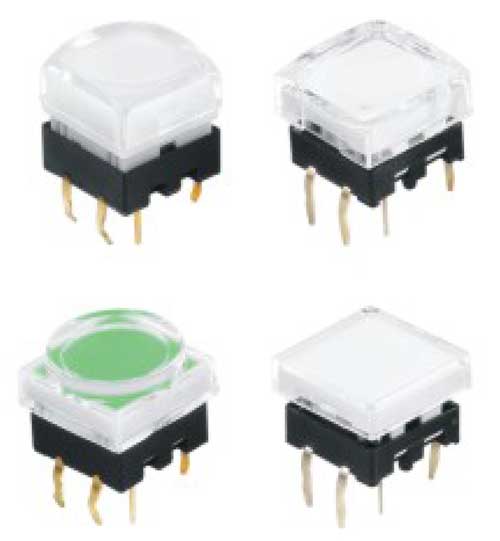

帶燈輕觸開關R2901

• Contact Rating：50mA@12VDC

• Electrical Life：1,000,000 cycles

• Travel：0.4±0.15mm

• Contact Resistance：100mΩ Max.(initial)

• Insulation Resistance：100 megohms min.@500VDC

• Dielectric Strength：250VAC for 1min

• Operating Temperature：-20℃ ~70℃

Part Number	Contact Rating	Contact Resistance	Insulation Resistance	Dielectric Strength	Electrical Life	Travel	Operating Temperature	PDF下載
R2901-TW-□-□□-V	50mA@12VDC	100mΩ Max.(initial)	100 megohms min.@500VDC	250VAC for 1min	1,000,000 cycles	0.4±0.15mm	-20℃ ~70℃	暫無
R2901B-TW-□-□□-V	50mA@12VDC	100mΩ Max.(initial)	100 megohms min.@500VDC	250VAC for 1min	1,000,000 cycles	0.4±0.15mm	-20℃ ~70℃	暫無
R2901A-TW-□-□□-V	50mA@12VDC	100mΩ Max.(initial)	100 megohms min.@500VDC	250VAC for 1min	1,000,000 cycles	0.4±0.15mm	-20℃ ~70℃	暫無
R2901C-TW-V	50mA@12VDC	100mΩ Max.(initial)	100 megohms min.@500VDC	250VAC for 1min	1,000,000 cycles	0.4±0.15mm	-20℃ ~70℃	暫無
R2901E-TW-□-□□-V	50mA@12VDC	100mΩ Max.(initial)	100 megohms min.@500VDC	250VAC for 1min	1,000,000 cycles	0.4±0.15mm	-20℃ ~70℃	暫無
R2901F-TW-□-□□-V	50mA@12VDC	100mΩ Max.(initial)	100 megohms min.@500VDC	250VAC for 1min	1,000,000 cycles	0.4±0.15mm	-20℃ ~70℃	暫無
R2901B-TW-□-□□-M-V	50mA@12VDC	100mΩ Max.(initial)	100 megohms min.@500VDC	250VAC for 1min	1,000,000 cycles	0.4±0.15mm	-20℃ ~70℃	暫無
R2901K-TW-□-□□-V	50mA@12VDC	100mΩ Max.(initial)	100 megohms min.@500VDC	250VAC for 1min	1,000,000 cycles	0.4±0.15mm	-20℃ ~70℃	暫無
R2901D-TW-□-□□-V	50mA@12VDC	100mΩ Max.(initial)	100 megohms min.@500VDC	250VAC for 1min	1,000,000 cycles	0.4±0.15mm	-20℃ ~70℃	暫無
R2901G-TW-□-□□-V	50mA@12VDC	100mΩ Max.(initial)	100 megohms min.@500VDC	250VAC for 1min	1,000,000 cycles	0.4±0.15mm	-20℃ ~70℃	暫無
R2901H-T-□-V	50mA@12VDC	100mΩ Max.(initial)	100 megohms min.@500VDC	250VAC for 1min	1,000,000 cycles	0.4±0.15mm	-20℃ ~70℃	暫無
